LEARNING FROM IMAGES Oops!! Can we Prevent this Fundamental Mistake?



Vandana Dua Niyyar*, 1, Tushar J Vachharajani 2
1 Department of Nephrology, Emory University, Atlanta, GA, USA
2 W. G. (Bill) Hefner Veterans Affairs Medical Center, Salisbury, NC, USA


Article Metrics

CrossRef Citations:
0
Total Statistics:

Full-Text HTML Views: 732
Abstract HTML Views: 635
PDF Downloads: 177
ePub Downloads: 158
Total Views/Downloads: 1702
Unique Statistics:

Full-Text HTML Views: 434
Abstract HTML Views: 422
PDF Downloads: 121
ePub Downloads: 119
Total Views/Downloads: 1096



© Niyyar and Vachharajani.; Licensee Bentham Open.

open-access license: This is an open access article licensed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/3.0/) which permits unrestricted, non-commercial use, distribution and reproduction in any medium, provided the work is properly cited.

* Address correspondence to this author at the Department of Nephrology, Emory University, 331 Woodruff Memorial Building, 1639 Pierce Drive, Atlanta, GA 30322, USA; Tel: 404-727-9708; Fax: 404-727-3425; E-mail: vniyyar@emory.edu




INTRODUCTION

Tunneled central venous catheters (TCVC) are a frequently used vascular access option to initiate hemodialysis across the globe. These TCVC are placed by resident physicians, mid-level providers and physicians from several different subspecialties. TCVC vary in their designs, including the catheter tip and their lengths, though all of them have a polyester cuff that helps secure the catheter in the subcutaneous tunnel. The tips of the TCVC used for dialysis differ widely and may be stepped, split or symmetric in design. Ideal placement of a TCVC in the internal jugular vein involves: 1) Initial venous puncture positioned as low in the neck as possible, thus providing a smooth wide curve to the catheter segment in the subcutaneous tunnel 2) The polyester cuff positioned 1-2 cm from the exit site in the subcutaneous tunnel 3) The exit site located in the infra-clavicular region, avoiding the breast tissue and 4) The catheter tip positioned in the mid right atrium

A standard teaching and learning process in the medical field involves peer-review and evaluation of fundamental mistakes that physicians encounter in clinical practice. The current images are examples demonstrating improperly placed TCVC providing a resource to the growing international interventional nephrology community to learn and preferably avoid duplicating them. The catheter cuff in Fig. (1) was not only placed deep in the subcutaneous tunnel, but the catheter hub was pushed in all the way up to the exit site. A deeply placed catheter cuff makes removal of these catheters difficult when the TCVC is no longer needed. The catheter in Fig. (2) was removed when it was no longer needed, revealing the trimmed off venous tip of the split-tip design. The tips are manufactured with a smooth surface to avoid endothelial trauma. Trimming of the catheter tip can lead to ragged edges that can cause endothelial trauma and potentially lead to stenosis and thrombosis. Moreover, the venous tip in a TCVC with split-tip is designed to minimize the recirculation during hemodialysis, and trimming of the tip leads to inefficient hemodialysis [1].

Fig. (1).

Catheter hub (marked by arrow) at the exit site (courtesy: Shukhrat Artikov, MD).


Fig. (2).

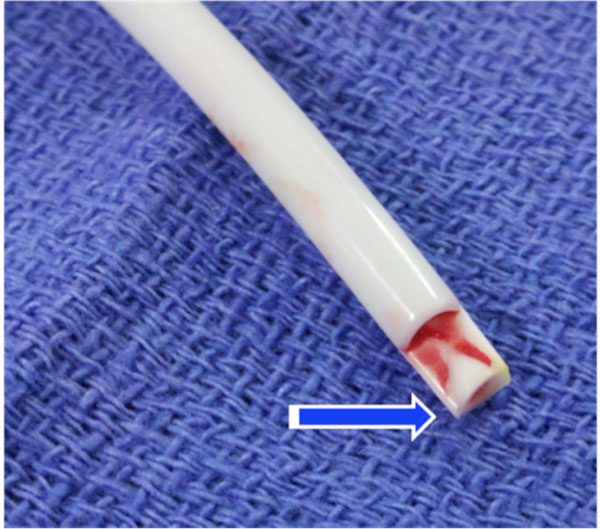

Trimmed venous tip (marked by arrow) from a split-tip designed tunneled central venous catheter.


The authors believe that both these cases were result of poor techniques and judgment that required improvisation and compromised patient safety. The catheter selected in Fig. (1) was probably too short and hence needed the entire length to be placed in the subcutaneous tunnel so the tip could be positioned in the mid right atrium to provide adequate blood flow on hemodialysis. The catheter in Fig. (2), on the other hand, was probably too long and had to be trimmed so that the tip was positioned in the right atrium and the cuff within 1-2 cm from the exit site.

These cases serve to highlight the importance of meticulous planning while placing tunneled central venous catheters and defining the location of the exit site, taking into consideration both the height of the patient and the length of the catheter [2].
